SHA With Integrated Servo Drive

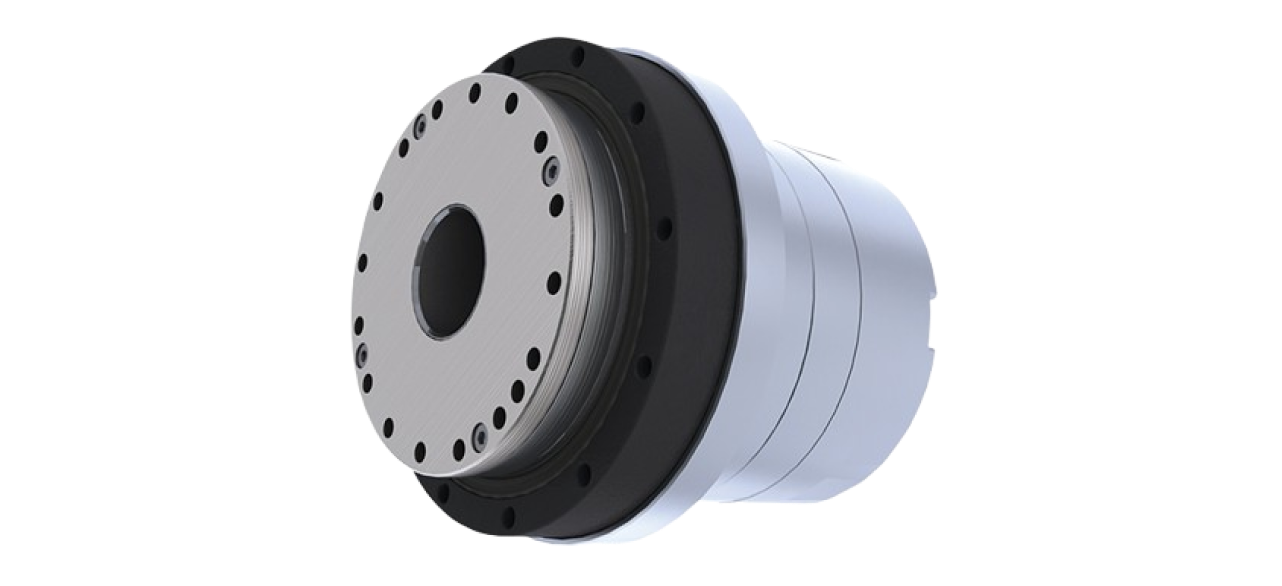

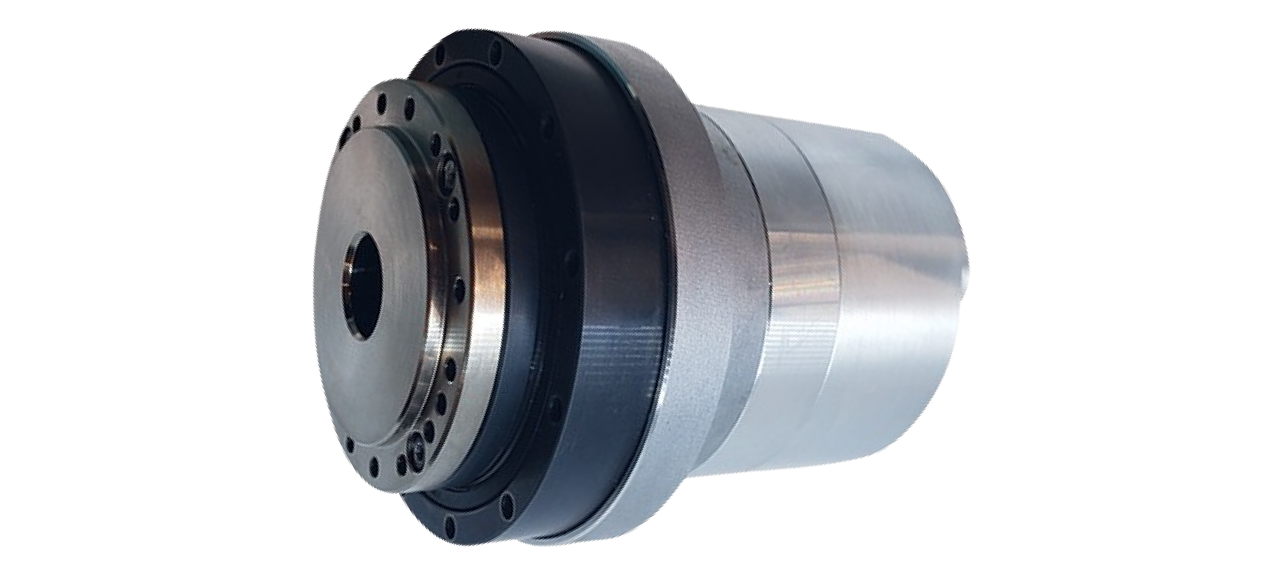

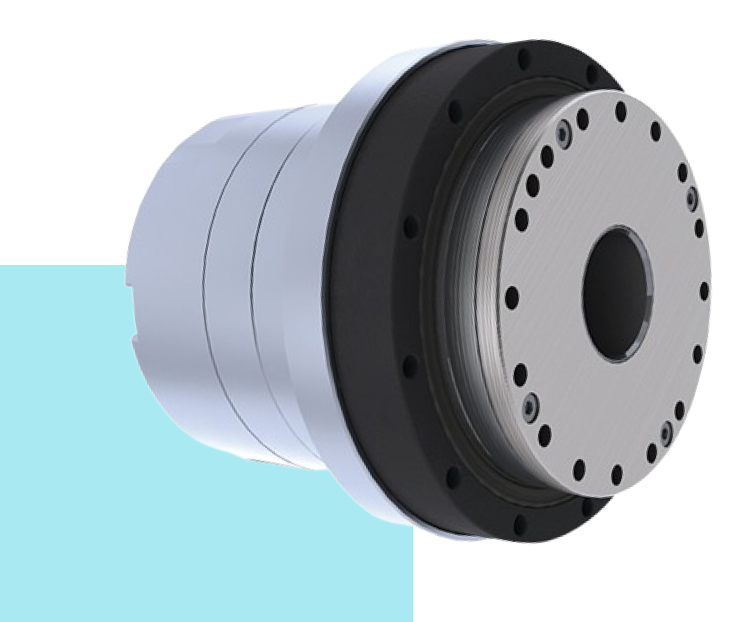

The SHA-IDT Series is a family of compact actuators that deliver high torque with exceptional accuracy and repeatability. These hollow shaft servo actuators feature Harmonic Drive® precision strain wave gears combined with a brushless servomotor, a brake, two magnetic absolute encoders and an integrated Servo Drive with CANopen® Communication. This revolutionary product eliminates the need for an external servo drive and greatly simplifies cabling yet delivers high-positional accuracy and torsional stiffness in a compact housing.

Key Features

  • Actuator + Integrated Servo Drive with CANopen® Communication
  • 48VDC Supply Voltage
  • Single Cable with only 4 conductors is needed: CANH, CANL, +48VDC, 0VDC
  • Zero Backlash Harmonic Drive® Gearing
  • Panel Mount Connectors with radial and axial options
  • Dual Absolute Encoders
  • Output Sensing Encoder: 16 bit resolution (65,536 cpr)
  • Input Sensing Encoder: 17 bit resolution (131,072 cpr)
  • Control Modes: Torque, Velocity, Position, CSP, CSV, CST
  • Harmonic Drive® HDL Software

Harmonic Drive® HDL Software Options

  • 4 I/O
    • 2 NPN or 2 PNP Opto-Isolated Digital Inputs
    • 2 Programmable Analog/Digital Inputs or Open Drain Outputs
  • Motor Torque Off (MTO): When either or both of the 2 MTO inputs are low, PWM outputs to the motor are inactive and current to the motor will not be possible. Control power remains active.
  • Flex-rated cables with sealed connectors available

Compact Actuator Industries & Uses

A compact rotary actuator can serve in a wide range of industrial and manufacturing applications:

Automation

These actuators can help optimize results in the various automated systems used to operate packaging machinery, assembly lines and material handling equipment.

Robotics

An actuator can improve the function of robots that conduct end-of-arm tooling and material handling functions.

Aerospace

A compact actuator system offers precise, powerful movement within minimal space constraints that are essential for controlling aircraft systems and components like landing gear and flaps.

Process control

Industries like oil and gas, pharmaceuticals and chemical manufacturing use these actuators to regulate the flow of fluids.

Deburring

The metal finishing industry can use actuators to remove sharp edges, burrs and other workpiece imperfections.

Why Choose Us as Your Compact Actuator Manufacturer?

At Harmonic Drive, we work hard every day to provide precision motion control solutions that meet our customers' needs and give them a competitive edge. Our unparalleled technical expertise, decades of experience and ability to deliver customized OEM solutions will enable us to become trusted partners in your company's success.

Our dedicated, full-service engineering team will work closely with you to ensure your product design meets your specifications. We typically provide our engineering design service free of charge as an added benefit for our customers. Moreover, we handle the entire manufacturing process in-house, ensuring exceptional quality control and maximum product consistency.

Explore Our Compact Rotary Actuators Today

Contact Harmonic Drive to learn more about your compact actuator options and the benefits of selecting us as your manufacturer. Call us at 978-532-1800 or return the online form to request additional product and pricing information today.
